Description Of BM02D/05D/12D/20D :

This type of blow molding machine BM02D/05D/12D/20D series suitable for producing :

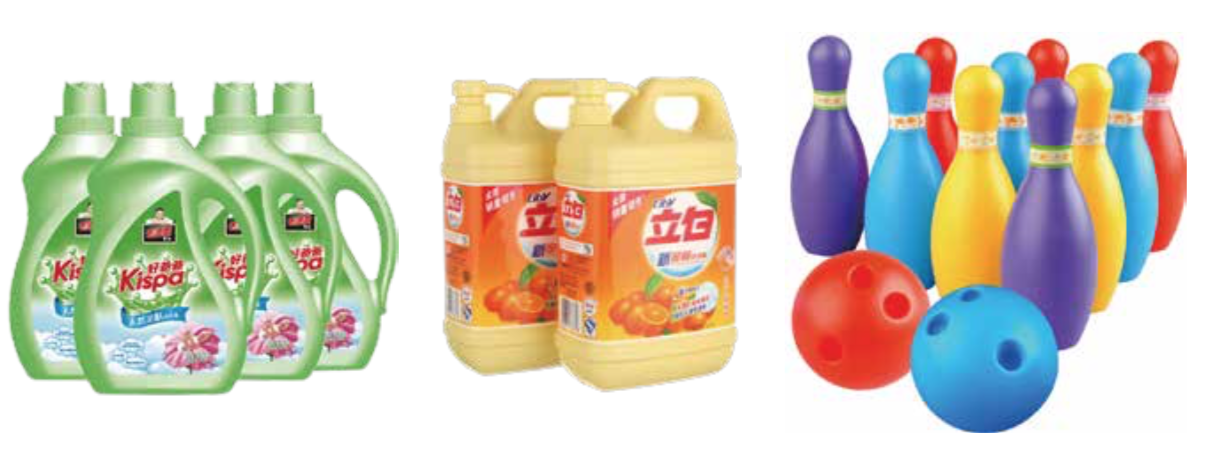

1. 100ml-3000ml different size of milk bottle, soy sauce bottle, yellow wine bottle
2. 200ml-5000ml different size of shampoo bottle, body wash bottle, detergent bottles, other toiletries
3. Chrilden's toys

In order to fit your various products in this machine, we offer follow optionals :

1. Pearly lustre layer co-extrusion system
2. Product size : Selectable cavity of die head
3. Product metrial : Single station hydraulic screen-exchanger system
4. Customer demand : Auto-deflashing on-line, scrap conveying on-line, finished prosuct conveying on-line and others.

Equipment Details :

　Control System

• SIEMENS human-machine interface : Providing easily set, search, change and store the parameters, the controlling system has self-diagnosis functions, so malfunctions can be displayed on the screen.
• BECKHOFF Germany human-machine interface : Machine interface and parison programmer can adjust within 300 points.
• MOOG parison programmer : Parison control system uses MOOG 100 points passion programmer, and it uses specially designed separate hydraulic power package to control the movement of cylinder, so it has high precision.

　Extrusion and Die Head

• Our extruder screw and barrel, provide high output, smooth plastization, wearable and long life. The gear box is the kind of product specially used for plastic extrasion.
• We supply stable and different kinds of single/multi-layer continuous/accumulating type die head. Fit for customer’s requirement for different high molecular material and different no of layer.

　Blowing System

• Up-blowing unit : Use for continuous type blow molding machine.
• Bottom-blowing unit : Use for accumulating type blow molding machine.

　Output System

• Finished product take out robot.
• Together scrap collect, convey, crusher into one unit.

　Hydraulic System

• YUKEN hydraulic controlling system : Used servo-controlled technology to control the movements of actuators, has follow advantages : quickly response and highly energy-efficiency.
• Optional REXROTH and GEFRAN hydraulic system : Could save about 50% energy.

　Opening and Closing System

• Toggle struction
• Common three platen and three tie bar struction

　Lubrication System

• Auto-lubrication system can lubricate the system with a set cycle automatically.

　Electric System

• SIEMENS : CPU unit, temperature-control unit, digital-output unit, analog-output unit
• MITSUBISH I: CPU unit
• ABB : Invertor revolving speed-control
• Schneider : Electric components

Kasmac Industries Co., Ltd initially was a Taiwan-owned seller which was established in 1982. With more than 30 years of development and export experience, it has become one of the leading suppliers both in mainland China and Taiwan, we has built good cooperation relationships with a lot of local factories around China.

We specialize in various machinery and equipments and provide a wide range of products ranging from plastic process machinery, packing related machinery & material, paper related machinery, chemical products etc.

Kasmac Industries Co., Ltd sincerely welcome new and old customers around the world to visit us. We welcome your inquiry and looking forward to our future cooperation. We believe that the small steps we take now can make a big difference in the future!
