    Dual Pipe Plastic Pipe Production Line Twin Screw With Dustless Cutting Machine

    Ask Lasest Price
    Model Number : JWG-PVC
    Certification : CE、ISO
    Price : Depends on different model
    Payment Terms : L/C, T/T
    Supply Ability : 10 sets / 90 days
    Delivery Time : 120 days
    • Product Details
    • Company Profile

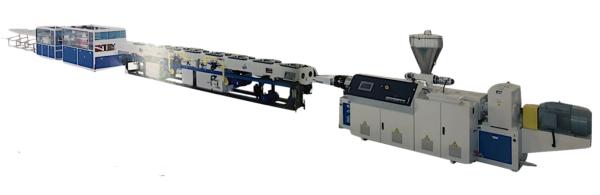

    Dual Pipe Plastic Pipe Production Line Twin Screw With Dustless Cutting Machine

    Descriptions :


    Corresponding to the different requirments of pipe diameter and output, there are two types of SJZ80 and SJZ65 special twin-screw extruders optional, the dual pipe die evenly distributes the material output and the pipe extrusion speed is quickly plasticized.

    Equipped with high-efficiency double-vacuum cooling box can be controlled separately and the adjustment operation is convenient in the production process. Dustless cutting machinem double station independent control, fast speed, accurate cutting length. Pneumaticlly rotating clamps eliminates the need to change clamps. With chamfering device optional.


    Main Technical Parameters
    ModelStrandPipe SpecExtruderMain PowerOutput
    Unitmmkwkg/h
    JWG-PVC 63Two⌀16-⌀63SJZ65/13237250-300
    JWG-PVC 110Two⌀50-⌀110SJZ80/15655300-400
    JWG-PVC 200Two⌀50-⌀200SJZ80/17375400-500

    Other Pipe Line Assisting Parts :

    • Screw and barrel : Use China’s best screw brand established in 1978 which has 40 years professional experience in production of screw barrels. An effective guarantee of product quality. Offer single-screw, twin-screw barrels also has special customized designs.
    • Online Pipe Weight Metering And Monitoring System : Gravity metering equipment is used in the extrusion process which can save raw material consumption to the greatest extent and reduce boot waste. The control accuracy is less than ± 0.3%.
    • Pipe Socketing Machine : This machine can be used for the belling of PVC/PP solid wall pipe, double-wall corrugated pipe. The belling mould adopts hydraulic driving. The range is Φ20-Φ800.
    • Mixers : Adopts PLC control. It is mainly applied to the process of ingredients, mixing, coloring, drying and devolatilization of various resins such as polyvinyl chloride.
    • Crusher : Shredding scraps during the production of reclaimed pipes and unconventional products produced during trial production. There are crushers with different uses and specifications to choose form.
