12 Shuttles Plastic Bag Making Machine , Woven Sack Making Machine Centrifugal Floating

    Buy cheap 12 Shuttles Plastic Bag Making Machine , Woven Sack Making Machine Centrifugal Floating from wholesalers

    Buy cheap 12 Shuttles Plastic Bag Making Machine , Woven Sack Making Machine Centrifugal Floating from wholesalers
    • Buy cheap 12 Shuttles Plastic Bag Making Machine , Woven Sack Making Machine Centrifugal Floating from wholesalers

    12 Shuttles Plastic Bag Making Machine , Woven Sack Making Machine Centrifugal Floating

    Ask Lasest Price
    Model Number : SBYZ, SBY
    Certification : CE
    Price : Depends on different model
    Payment Terms : L/C, T/T
    Supply Ability : 4 sets / 90 days
    Delivery Time : 90 days
    • Product Details
    • Company Profile

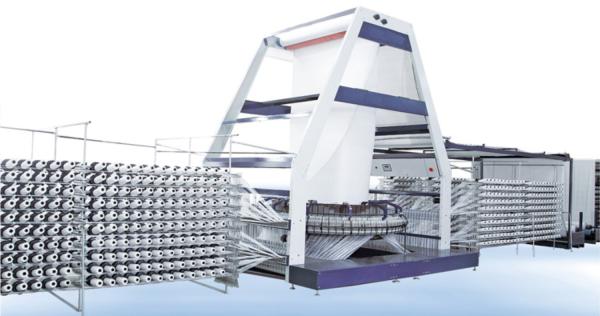

    12 Shuttles Plastic Bag Making Machine , Woven Sack Making Machine Centrifugal Floating

    Descriptions Of SBYZ-2700x12 :

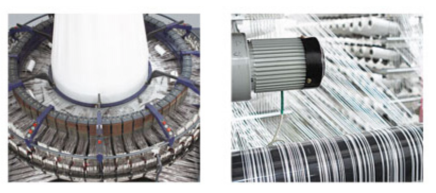

    Model SBYZ-2700x12 and SBY-2700x12 design to produce wire flexible intermediate bulk container (FIBC's), flat container fabric (U-panel FIBC), tarpaulin, geo-textiles, other type woven fabrice. But the most diffenences is SBYZ type adopt DST (Direct Synchroization Torque) motor, another SBY use new-type flat cam structure. Centrifugal floating type 12 shuttles circular loom is a kind of new generation machine developed by present market's requirments. Has advantages of high safety factor, human-based interface, power saving and low loss of quick-wearing part.


    Main Technical Parameters
    ModelUnitSBYZ-2700x12SBY-2700x12
    Structure Differences-DST MotorNew Type Flat Cam
    Number Of Shuttlespcs1212
    Max. Revolutionsrpm6860
    Weft Insertionppm816720
    Working Width / Double Flatmm2200-27002200-2700
    Working Width / Double Flat (At Reduced Pick Rate)mm2700-2600 / 2200-23002200-2350
    Number Of Warp Tapepcs27362736
    Inside Diameter And Length Of Coremm⌀30-38 x 230⌀30-38 x 230
    Max. Diameter Of Weft Yarn Bobbinmm⌀115⌀115
    Main Motor PowerKw1115
    Warp Infeed Motor RatingKw0.3 x 40.3 x 4
    Haul Off Motor RatingKw1.11.1
    Winder Torque Motor RatingNm55
    Max. Roll Diametermm⌀1200⌀1200
    Dimensionsmm19000 x 4400 x 550019000 x 4400 x 5500
    WeightT10.510.5

    Quality 12 Shuttles Plastic Bag Making Machine , Woven Sack Making Machine Centrifugal Floating for sale
