    TTF-AF Plastic Thermoforming Machine , Automatic Vacuum Forming Machine Four Station

    Descriptions :

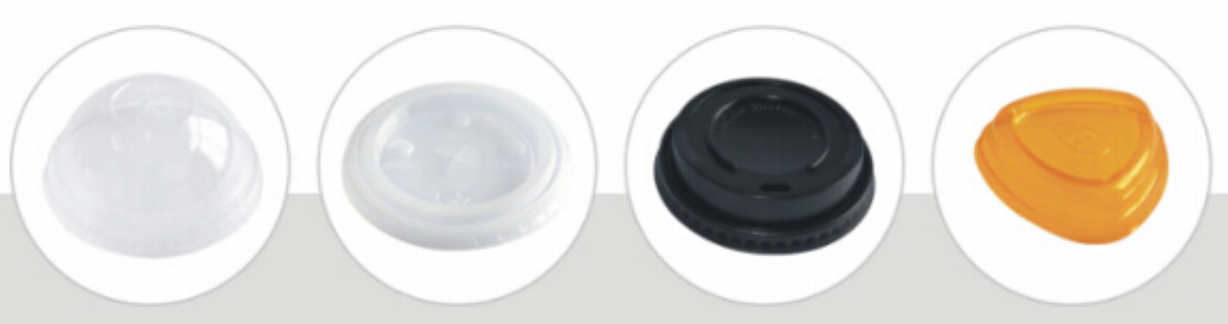

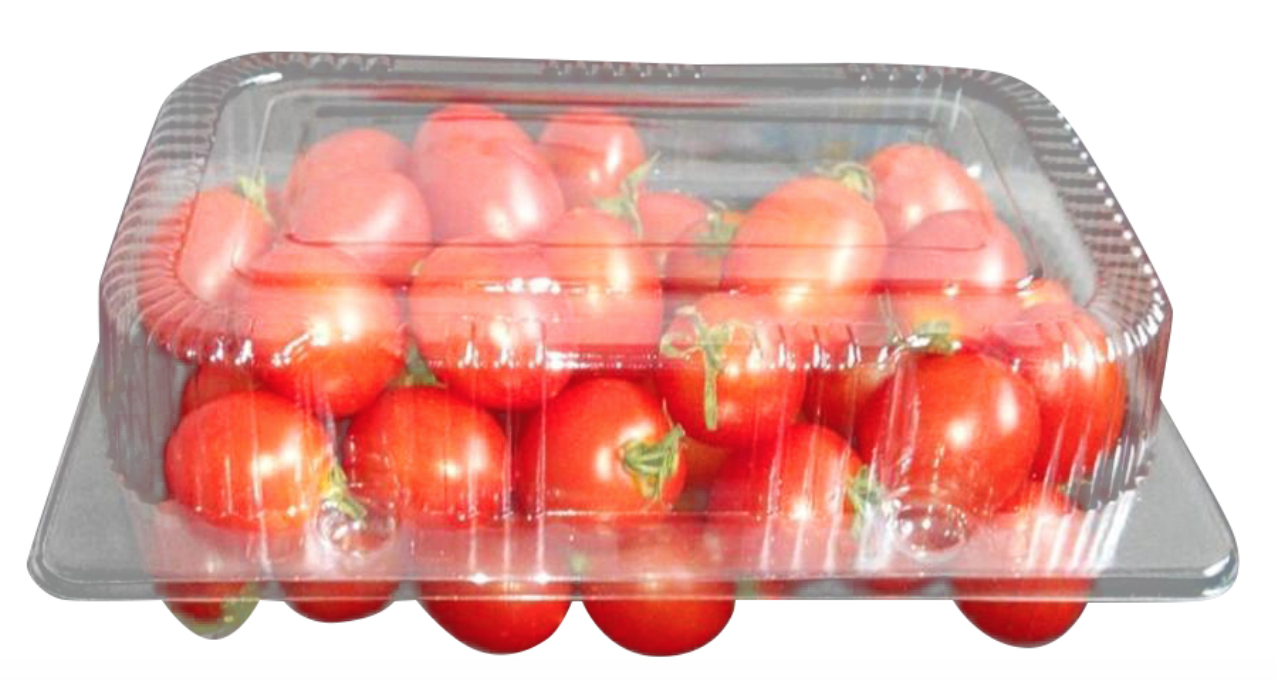

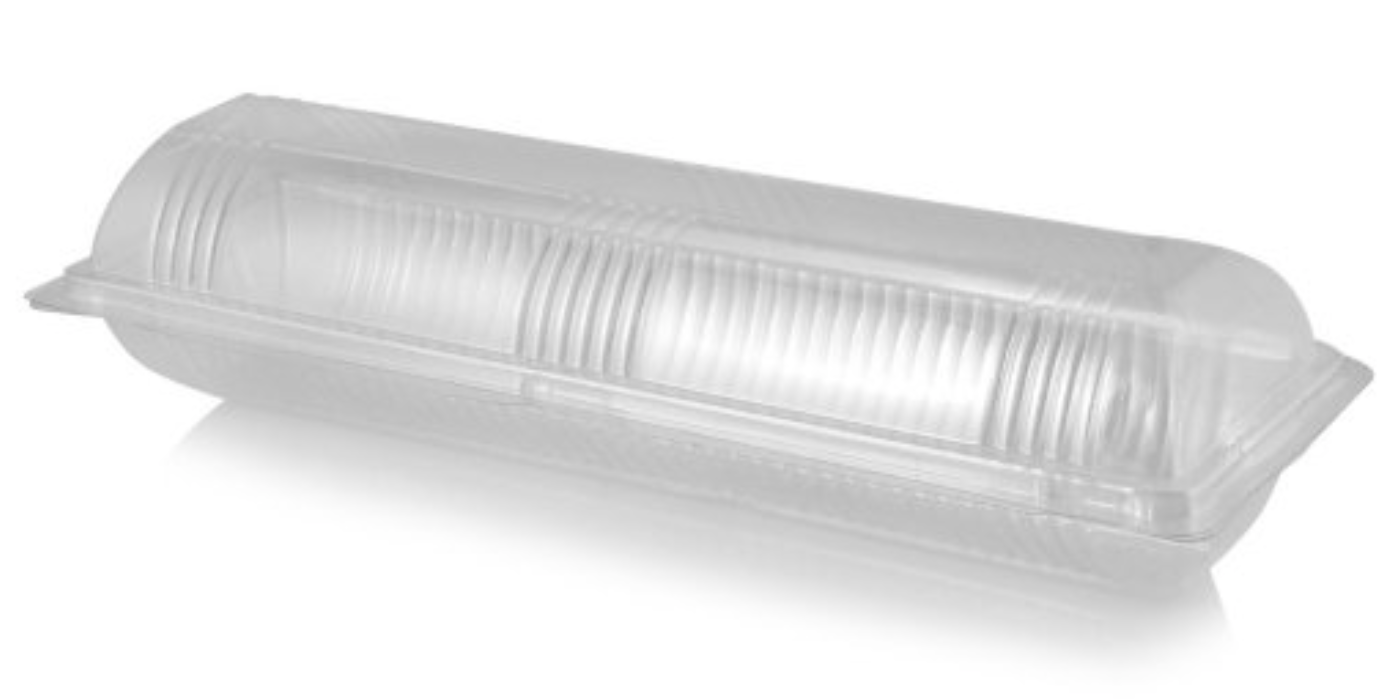

    TTF-AF series is forming-punching-cutting-stacking in one line. It is completely driven by servo motor, features stable operation, low noise, high efficiency, suitable for producing plastic trays, containers, boxes and lids etc.


    Main Technical Paraments
    ModelTTF-400AFTTF-520ATTF-780A
    Max. Forming Area (mm)400 x 300520 x 400780 x 620
    Max. Forming Depth (mm)60100100
    Sheet Thickness (mm)0.3-1.8
    Max. Forming Speed (times/mins)353026
    Air Pressure (Mpa)0.6-0.8
    Air Consumption (m³/min)233.6
    Water Consumption (m³/h)0.7
    Max. Sheet Width (mm)450570810
    Suitable SheetPP, PS, PET, PVC, HIPS etc.
    Rated Power (kw)75110220
    Power SupplyAC, 380V, 50Hz Three-phase four-wire
    ProcedureForming-Punching-Cutting-Stacking
    Dimension (LxWxH)7400 x 4000 x 260011000 x 4600 x 270014000 x 2800 x 2800
    Weight (T)7919

    Machine Main Parts
    Touch Screen, PLC, Air SwitchDelta, Taiwan
    Servopack, Servo MotorDelta, Taiwan
    Circuit Breaker, AC ContactSchneider, France
    CylinderAirTAC, Taiwan
    HeaterEpstein, Germany
    Proximity SwitchTurck, Germany
    Forming ValveMAC, America
    FilterCKD, Japan
