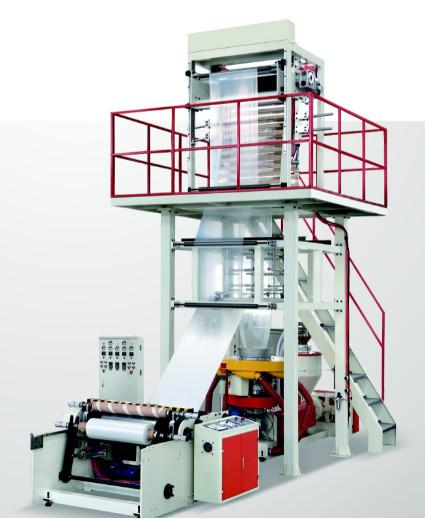

    Durable Blown Film Line FB-HS700-1300 / High Speed Pp Film Blowing Machine

    Descriptions FB-HS Series :


    FB-HS series is designed to absorb the advanced products of similar products at home and abroad. Adopts advanced technology such as 360° die continuous rotating device, efficient cooling double air duct, double cross section double surface grinding machine equipment. The main group can produce LDPE, LLDPE, HDPE and other raw materials for the composite film. With a good barrier, moisture, frost, oil, it can be widely used in light and heavy packaging such as fresh fruit, milk, beverages and so on.


    Main Technical Parameters
    ModelFB-HS-700FB-HS-900FB-HS-1100FB-HS-1300
    Suitable MaterialHDPE/LDPE/LLDPE
    Film Width (mm)300-600400-800500-1000600-1200
    Film Thickness (mm)0.008-0.100.008-0.100.008-0.100.008-0.10
    Max. Output (kg/h)HDPE : 60HDPE : 80HDPE : 100HDPE : 120
    LDPE : 80LDPE : 100LDPE : 120LDPE : 140
    Extrusion
    Screw Dia. (mm)⌀50⌀55⌀60⌀65
    Screw L/D30:1
    Screw MaterialSAC-645/38CRMOALA
    Cylinder MaterialSAC-645/38CRMOALA
    Cylinder Cooling (w)180x3180x3180x4180x4
    Main Motor (kw)18.5223037
    Temperature Control (zone)1
    Screen Change
    Changer TypeManual Screen Changer
    Temperature Control (zone)1
    Die Head
    Die Orifice Die (mm)HDPE : ⌀80HDPE : ⌀100HDPE : ⌀120HDPE : ⌀150
    LDPE : ⌀150LDPE : ⌀170LDPE : ⌀220LDPE : ⌀280
    Air Ring TypeDouble air vent air ring
    Air Blower TypeFrequency Control
    Air Blower Motor (kw)345.57.5
    Take-Up Unit
    Roller Width (mm)70090011001300
    Take Speed (r/min)10-90
    Motor Power (kw)1.11.51.51.5
    Stability Ring1 UNIT
    Winding Unit
    Winder TypeAuto back to back winder (Single)
    Effective Width(mm)60080010001200

    Dia Of Film

    Would-Up Roller

    800
    Sub-pinch Roller (mm)⌀300x700L⌀300x900L⌀300x1100L⌀300x1300L
    Air Shaft2 SETS
    Dimension LxWxH (m)5.5x2.1x5.56x2.3x66.3x2.6x6.56.6x2.8x6.8
    Average Power Consumption (kw/h)18202428
    Optional Device

    Surface treating, Embosing roller, Fast screen changer,

    Auto back to back winder (double)
