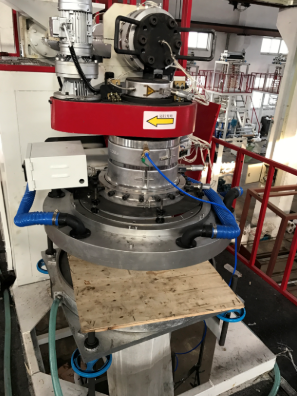

    Alloy Steel Screw Plastic Film Blowing Machine FB-G Polypropylene Rotary Die

    Descriptions Of FB-G Series :


    FB-G series with high quality alloy steel cylinders and screw stems extruder, which with optimum hardness and strong corrosion resistance after nitrogen treatment and precision finishing. Widely used to produce PP film for food, garments and textile, daily necessities and industrial products.


    Main Technical Parameters
    ModelFB-G-600FB-G-800
    Suitable MaterialPP
    Film Width (mm)600800
    Film Thickness (mm)0.015-0.080.015-0.08
    Max. Output (kg/h)3846
    Screw Dia. (mm)⌀60⌀65
    Screw L/D28:128:1
    Screw Rotation (r/min)10-10010-100
    Main Motor (kw)1518.5
    Orifice Dia. (mm)⌀250⌀350
    Total Power (kw)2836
    Dimension LxWxH (m)33.5
    Weight (T)6.4x2.4x4.86.5x2.5x4.9
