Multifunctional SLH Series 3 In 1 Plastic Recycling Line Combination Of Drying Dehumidifying Conveying

    Buy cheap Multifunctional SLH Series 3 In 1 Plastic Recycling Line Combination Of Drying Dehumidifying Conveying from wholesalers

    Buy cheap Multifunctional SLH Series 3 In 1 Plastic Recycling Line Combination Of Drying Dehumidifying Conveying from wholesalers
    • Buy cheap Multifunctional SLH Series 3 In 1 Plastic Recycling Line Combination Of Drying Dehumidifying Conveying from wholesalers

    Multifunctional SLH Series 3 In 1 Plastic Recycling Line Combination Of Drying Dehumidifying Conveying

    Ask Lasest Price
    Model Number : SLH
    Certification : CE
    Price : Depends on different model
    Payment Terms : L/C, T/T
    Supply Ability : 4 sets / 90 days
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    Multifunctional SLH Series 3 In 1 Plastic Recycling Line Combination Of Drying Dehumidifying Conveying

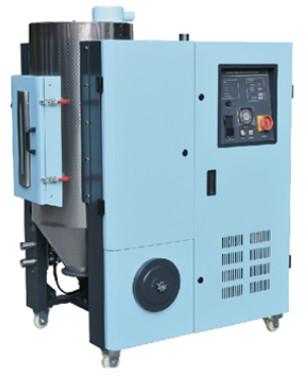

    Multi Functional SLH Series 3 in 1 Combination Of Drying, Dehumidifying and Conveying


    Descriptions :


    Combine the three functions of drying, dehumidifying and conveying into one. Also can make the equipment convey the materials onto three hoppers according to customer's requirements. The dehumidification system is designed to be closely hermetic, which ensures the air of low dew point doesn't contact with the outside air. The conveying system is designed to be closely hermetic, which ensures the dried material not contacting with the outside air and being wet again. The shut off valve is equipped on the conveying system to ensure no remnant materials in the material pipeline and smooth conveying. Double-layer heat preservation dry barrel to effective prevent the heat loss and save energy consumption. High efficient heat dissipate to ensure the air with lower temperature and lower dew point.


    Main Technical Parameters
    ModelCapacity (L)Dry Blower (m3/hr)Power Of Heater (kw)Power Of Dry Blower (kw)Power Of Rey. Blower (kw)Power Of Air Pump (kw)Power Of Rey. Heater (kw)Pipe Dia. (mm)Dimensions (LxWxH)
    SLH-40L/80408050.550.371.1538700x1200x1215
    SLH-80L/80808050.550.371.1538700x1200x1215
    SLH-120L/10012010071.10.371.1538700x1200x1215
    SLH-160L/10016010091.10.371.1538800x1350x1300
    SLH-230L/12023012091.50.551.5538800x1350x1300
    SLH-300L/150300150122.20.551.5738900x1500x1450
    SLH-380L/20038020014.530.551.5738900x1500x1450
    SLH-460L/30046020014.540.751.59381100x1650x1550
    SLH-600L/400600400185.50.751.512381100x1650x1550
    SLH-800L/500800500215.51.11.512511750x1900x1900
    SLH-1000L/7001000700247.51.52.214.5511750x1900x1900
    SLH-1200L/7001200700307.51.52.215511800x2200x2100
    SLH-1300L/1000H13001000364x22.2318512100x2200x2100
    SLH-1600L/1000H16001000424x22.2318512100x2200x2300
    SLH-2000L/1500H20001500425.5x22.25.521512300x2400x2300
    SLH-2600L/1500H26001500605.5x22.25.521512300x2400x2400
    SLH-3300L/2000H33002000607.5x237.527512500x2600x2500
    SLH-4000L/2000H40002000807.5x237.527512500x2600x2700
