    JH04-L High Speed Plastic Drinking Straw Production Line Single Straw Packing Machine Four Sides Sealing

    Ask Lasest Price
    Model Number : JH04-L
    Certification : CE
    Price : Depends on different model
    Payment Terms : L/C, T/T
    Supply Ability : 4 sets / 90 days
    Delivery Time : 90 days
    • Product Details
    • Company Profile

    JH04-L High Speed Plastic Drinking Straw Production Line Single Straw Packing Machine Four Sides Sealing

    JH04-L High Speed New Type Single Straw Packing Machine Four Sides Sealing


    Descriptions Of JH04-L :

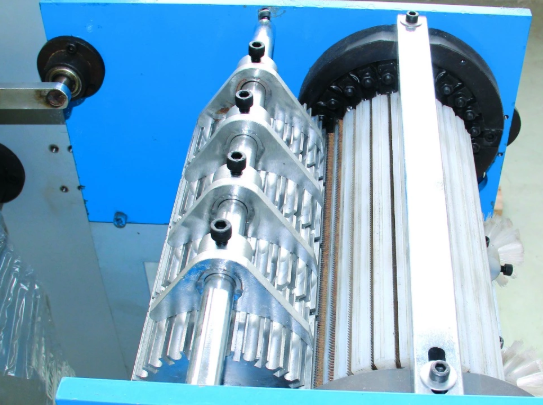

    JH04-L can pack single straw into BOPP film in connecting packages with one by one row pattern. Silicon vacuum hub and pressure heating sealing roller are used on the sealing mechanism, so it can make the spaces between straw packages very even, embossing is clarity, machine running smoothly and efficiently. Hot connecting cutting and cold split cutting are optional in cutting part.


    Features of JH04-L :


    • Optimize structure, highly effective, easy and stable operation.

    • Adopt protection device to avoid breaking packaging films when machine stop.

    • Straw length can be adjusted within a certain range.

    • Tension controller is used to keeping the BOPP film bag in evenly.


    Optional equipment :


    • Hot connecting cutting or cold split cutting.

    • Easy tears cutter when using clod split cutting.

    • Cutting device for cutting off package film edge.


    Main Technical Parameters
    ModelJH04-L
    Speed (pcs/min)800
    Straw size

    One fixed dia, can be selected from 2 to 8

    Length : 100-260 mm

    Package sizeWidth 115-275 mm
    Total power (kw)3
    Power supply380V / 220V
    Dimension (LxWxH, mm)2300x900x1600
    Weight (kg)450
